Description

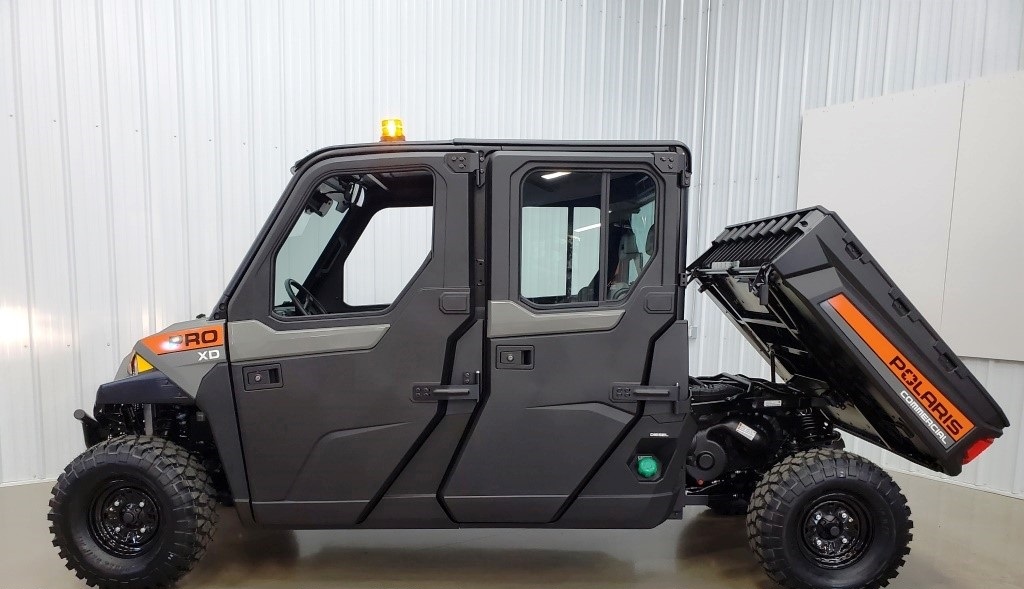

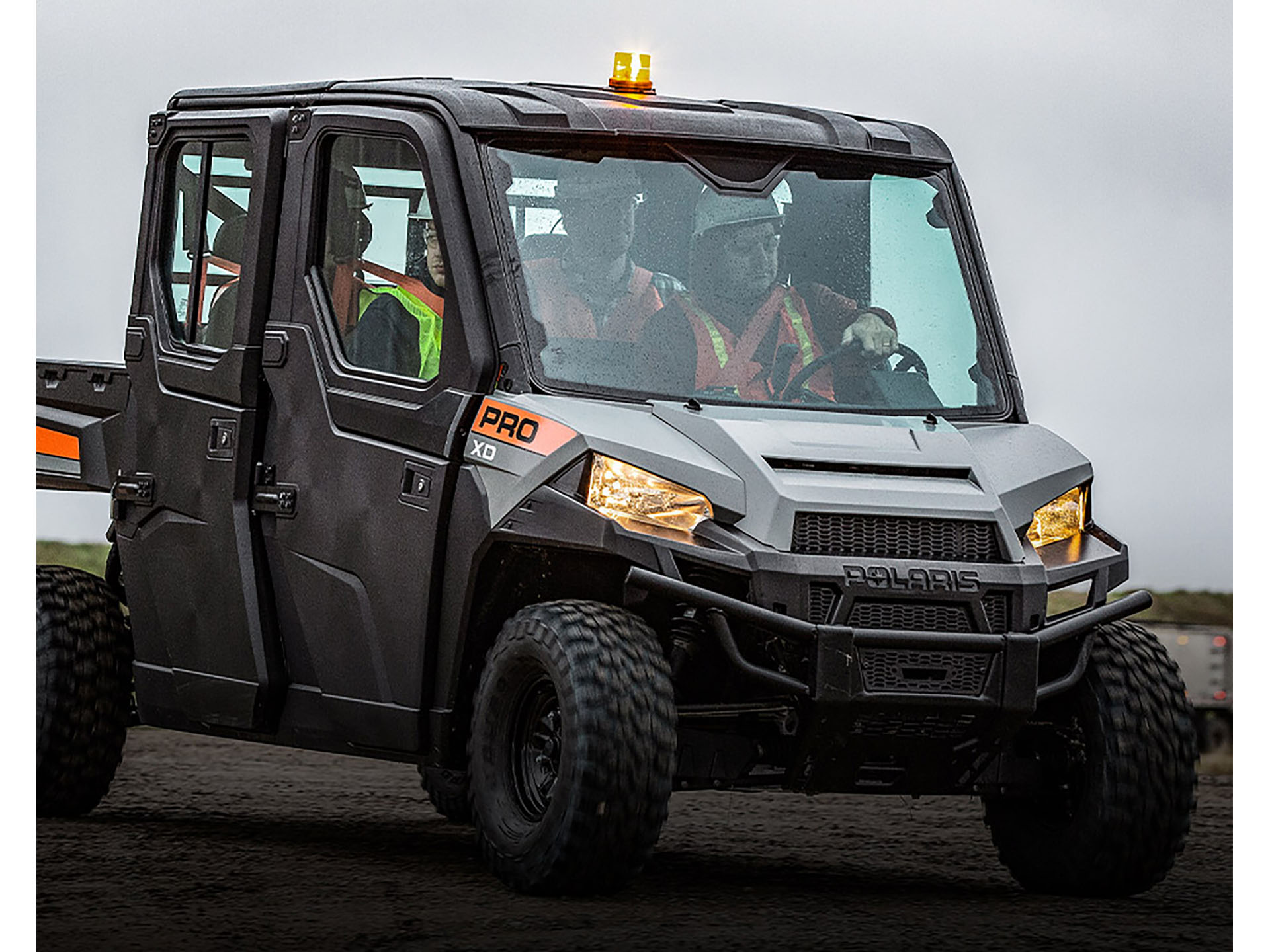

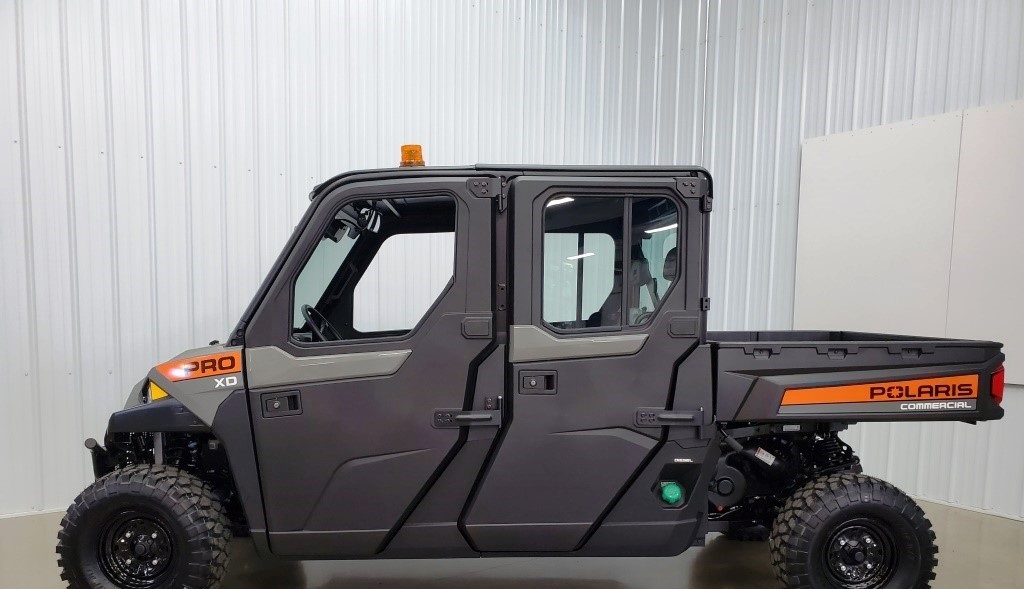

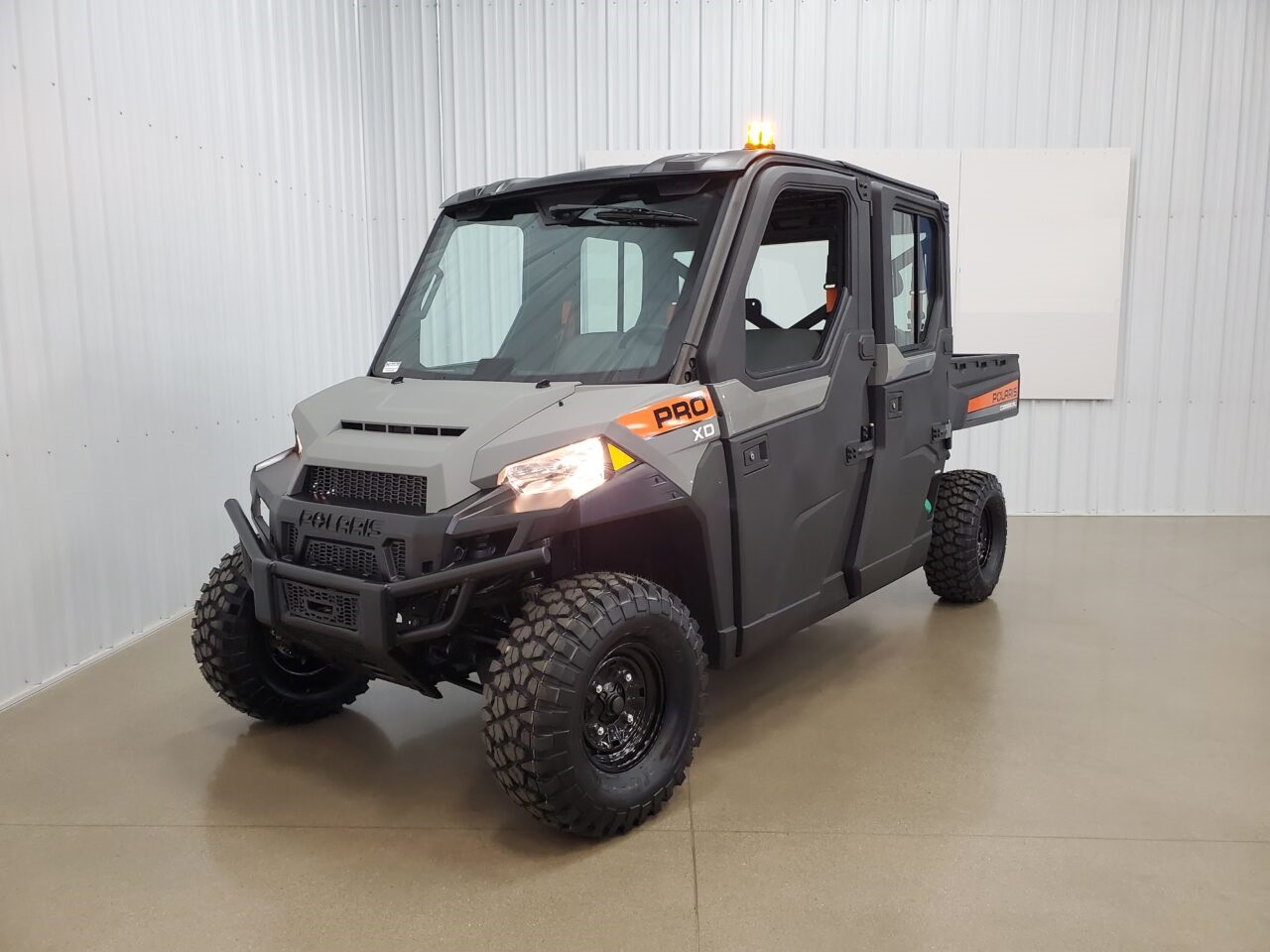

2025 Polaris Pro XD Full-Size Diesel Crew utility vehicle.
Condition: New
Category: Utility Vehicles
Model Type: Full-Size
Model Code: D25P4ED4B4
Color: Avalanche Gray
Durability Features
- TOWING AND PAYLOAD: Industry-leading 1,250 pounds of box capacity, up to 2,050 pounds of payload, and 2,500 pounds of towing capacity.
- INDUSTRY-RECOMMENDED POWER PLANTS: Choose between the Kubota® 24.5-Horsepower Diesel or the Polaris ProStar 1000cc engines.
- DRIVELINE COMPONENTS: HD drive shafts, CVT boots, and bushings/bearings ensure the driveline will withstand the life of the vehicle.

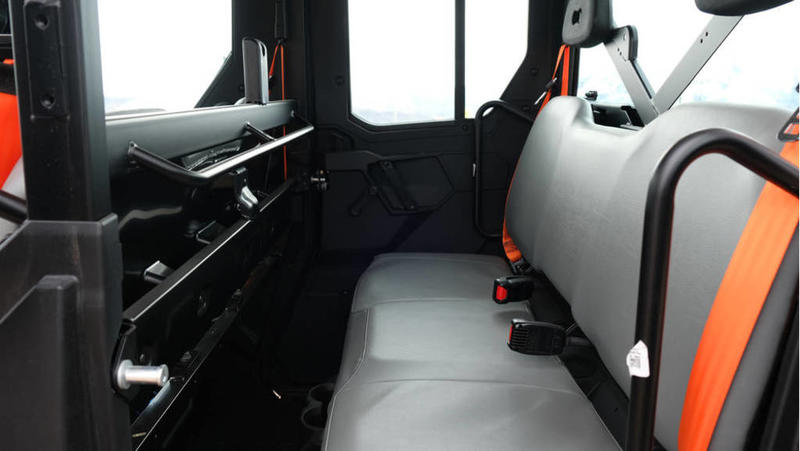

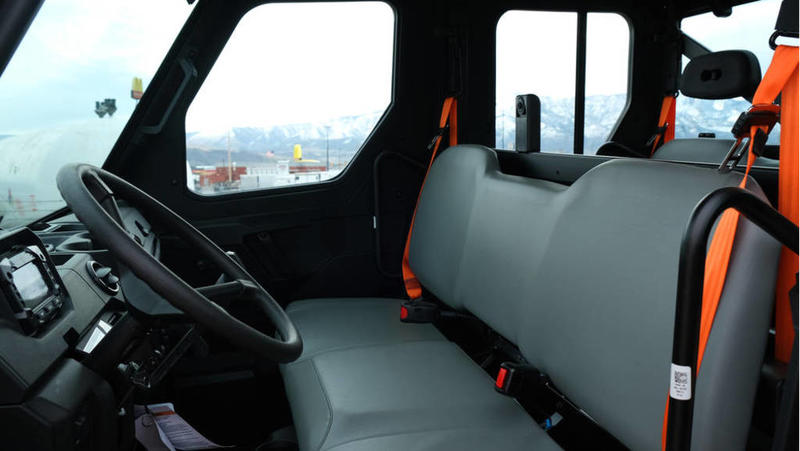

- HEAVY-DUTY SEATS: Kevlar® backed vinyl seats resist punctures and tears from jobsite abuse.

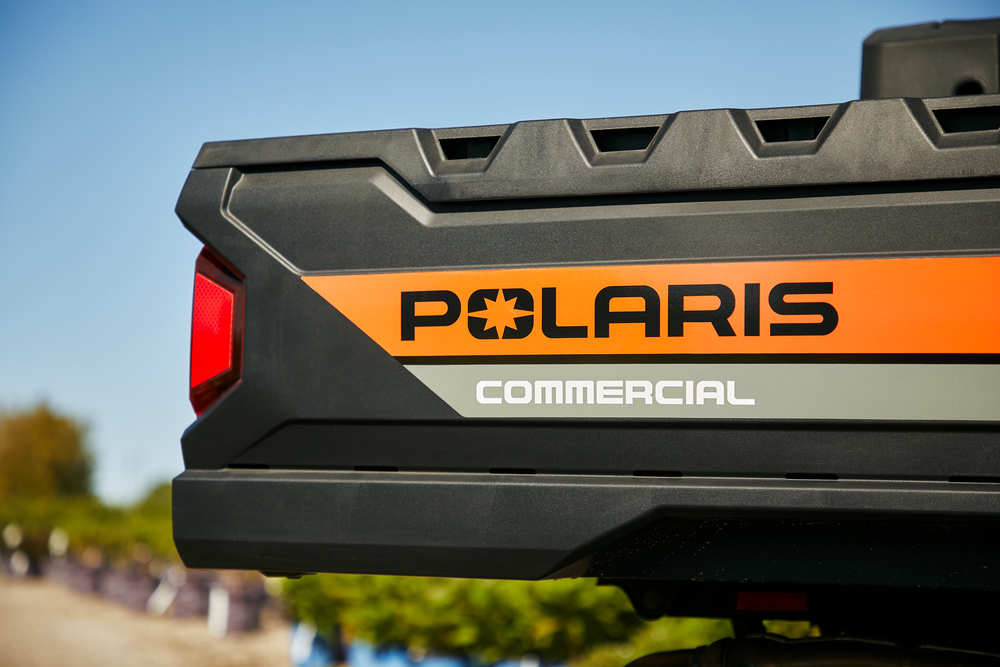

- HEAVY-DUTY POLY BED: Rust-free, dent-free bed with 1,250-pound capacity sized to fit a full-size pallet.
- The Pro XD was designed with heavy-duty components to provide industry-leading durability.
Safety Features
- SPEED LIMITED: Diesel models have a top speed of 26 mph to meet jobsite compliance, and can be adjusted to 15 mph. Gas models are delivered at 26 mph and can be digitally adjusted from 15-40 mph.

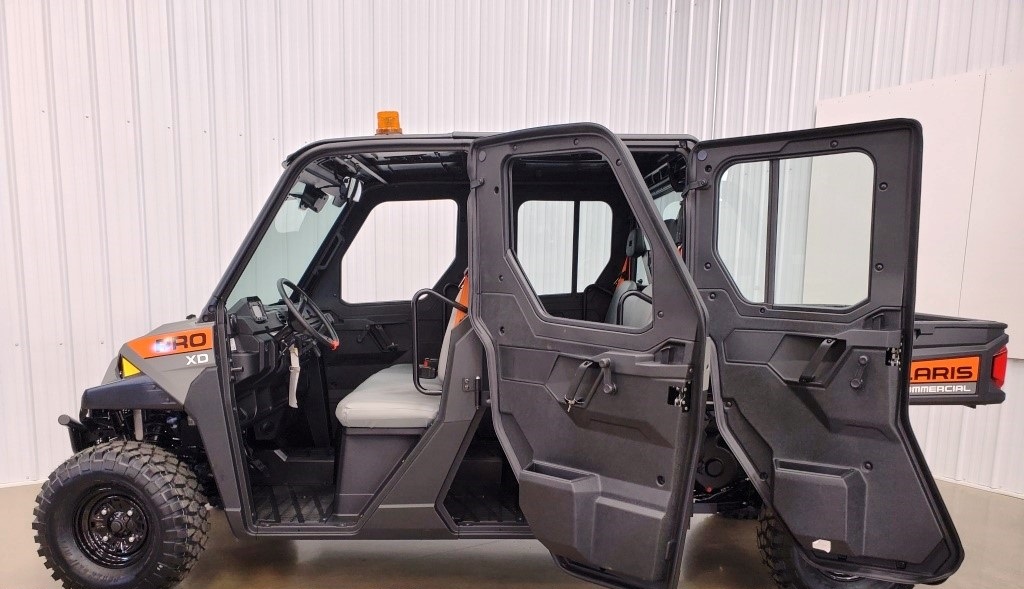

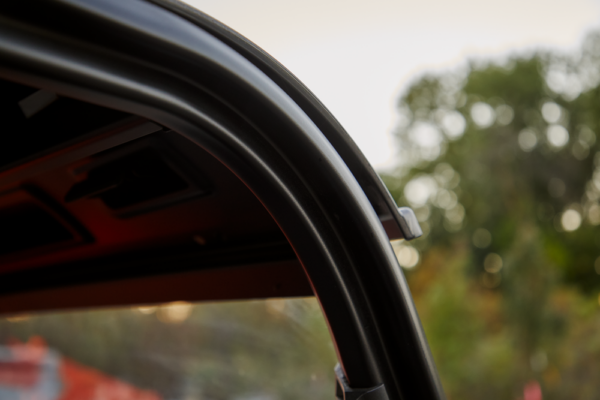

- TIGHT SEALING CAB: The Pro XD and cab were engineered together to create a tight seal to help keep dust and weather out.

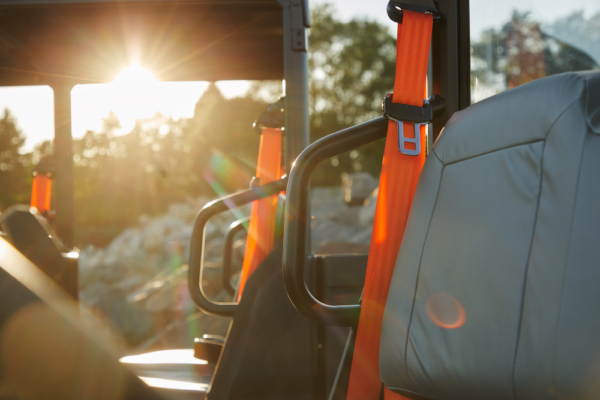

- HIGH-VIS SEATBELTS & DECALS: Orange seatbelts and decals improve vehicle visibility to surrounding workers.

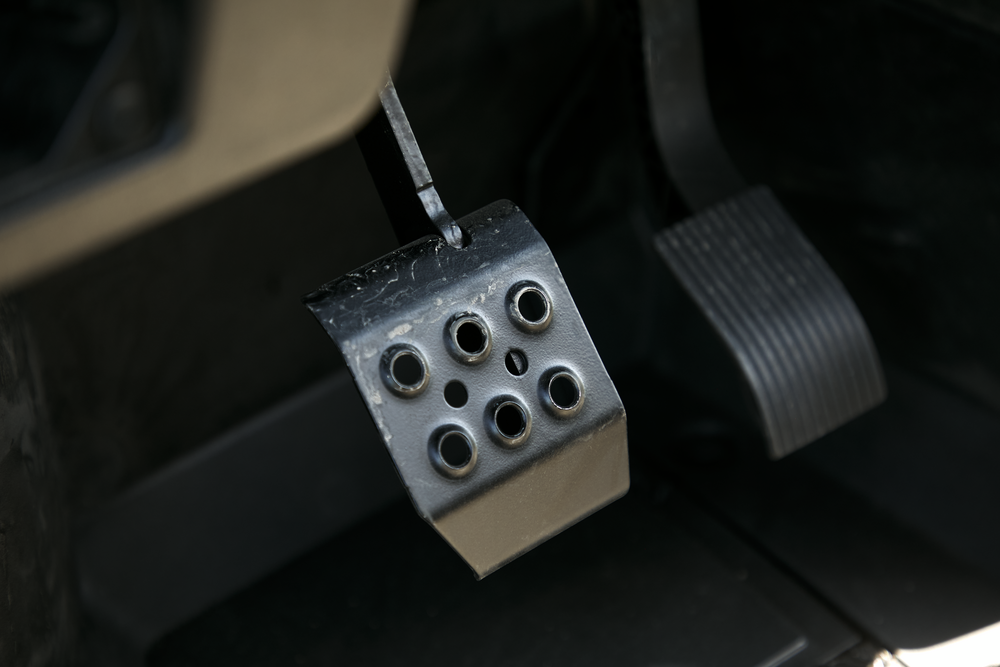

- STANDARD FACTORY ACCESSORIES: A back-up alarm and horn come standard; diesel models also have a mechanical parking brake.
- With safety being top priority on the jobsite, the Pro XD delivers industry-leading standard features designed to improve jobsite safety.
Serviceability Features
- MAINTENANCE INTERVALS: The Pro XD Full-Size provides 200-hour certified maintenance intervals for less in-field maintenance and reduced service costs.
- RELOCATED OIL DIPSTICK AND AIR FILTER: Easily conduct maintenance checks without having to raise the cargo bed.
- WARNING ALARMS: Fault alarms to notify users of potential issues that could cause serious damage to the vehicle. Alarms include low oil pressure, parking brake, belt slip, and engine overheat.
- FRONT AIR INTAKE: Air intakes in the front of the vehicle prevent dust ingestion into the system, driving longer air filter life and consistent engine performance.
- The Pro XD has multiple industry-leading features to improve serviceability.
Engine & Drivetrain
Air Intake
Front Air Intake with Donaldson® Cyclonic Air Filter
Cooling
Liquid
Cylinders Displacement
898 cc
Drive System Type
On-Demand 4×4
Engine Type
3-Cylinder Kubota® Diesel
Fuel System/Battery
Mechanical Injection
Horsepower
23.3 HP
Maintenance Interval
200 Hours (50 Hour initial)
Top Speed
26 mph (41 km/h) *Adjustable with accessories
Transmission/Final Drive

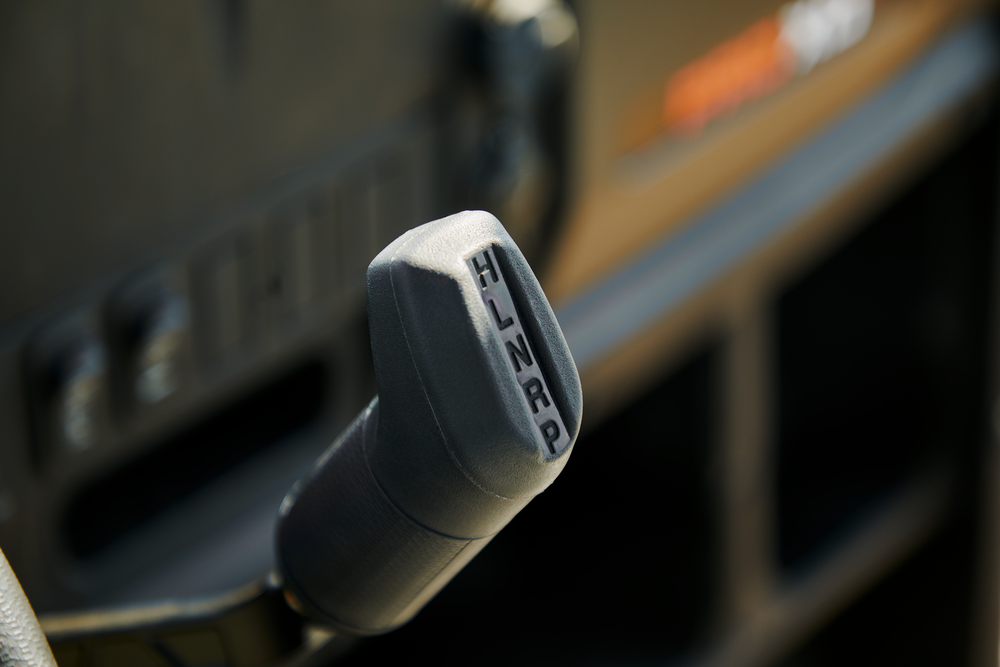

Automatic PVT H/L/N/R/P; Shaft
Dimensions
Bed Box Dimensions (L x W x H)
43.5 x 54 x 11.5 in (110.5 x 137 x 29 cm)
Box Capacity
1,250 lb (567 kg)
Estimated Dry Weight
1,944 lb (882 kg)

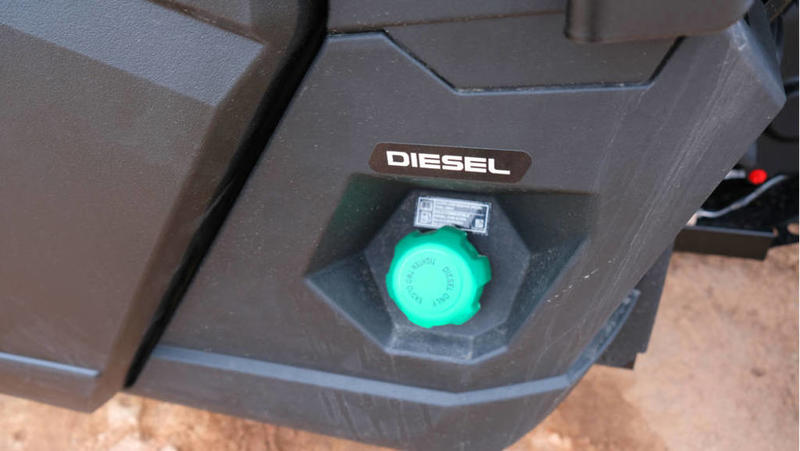

Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
11 in (27.9 cm)
GVWR
4,000 lb (1,814 kg)
Hitch Towing Rating
2,500 lb (1,134 kg)
Overall Vehicle Size (L x W x H)
157 x 62.5 x 75 in (399 x 159 x 191 cm)
Payload Capacity
1,900 lb (862 kg)
Person Capacity
4
Turning Radius
207 in (525 cm)
Wheelbase
117 in (297.2 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park in Transmission + Separate Mechanical Parking Brake Standard
Additional Specifications
Adjustable Driver Seat: Not Equipped
Cargo System Lock & Ride®
Hitch Type Standard 2 in (5 cm) Receiver
Instrumentation

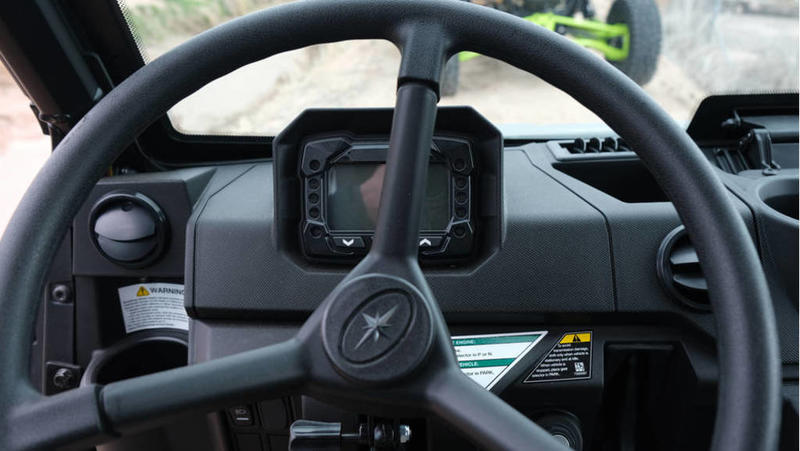

All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Engine Temperature, Hi-Temp Light, Clock, Clutch Belt Slip Warning, Glow Plug Indicator, Low Oil Pressure Indicator, Seat Belt Indicator, Parking Brake Engaged Alarm
Lighting 55W low/ 60W high, LED Tail
Other Standard Features

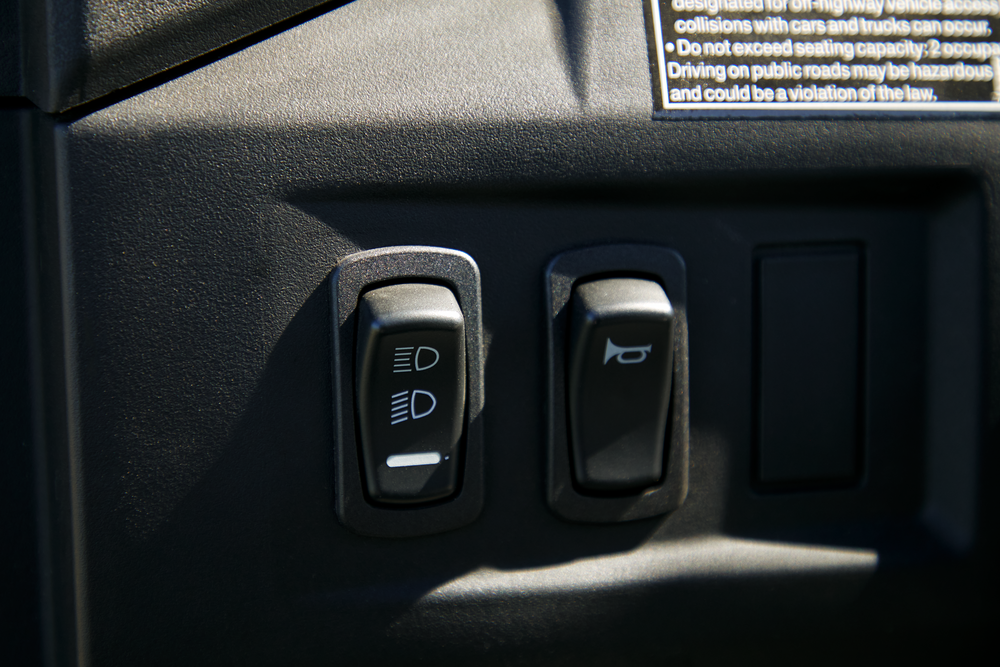

Horn, Backup Alarm, Mechanically Controlled Speed Limiting
Seat Covering
Kevlar®-Backed Vinyl (Grey)
Tilt Steering
Standard
Tires / Wheels
Electronic Power Steering
Standard
Front Tires
26 x 10-12 Duro® DI-2042 Power Grip (M/T)
Hubs
Front: Steel; Rear: Ductile Iron
Rear Tires
26 x 10-12 Duro® DI-2042 Power Grip (M/T)
Wheels
12 x 6 HD Steel – Gloss Black
Suspension
Front Suspension
9 in (22.9 cm)

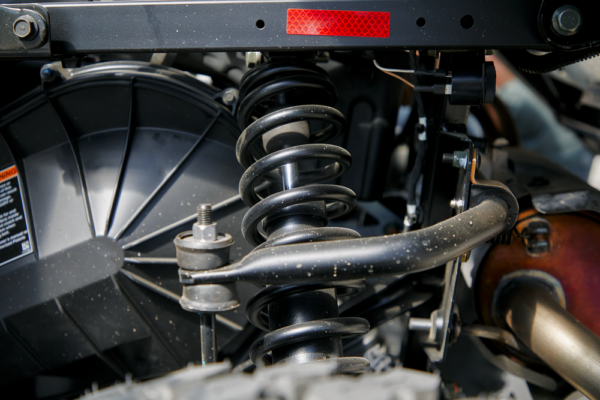

Rear Suspension
9 in (22.9 cm)
